名稱
Productions

規格
Specifications

數量
Quantity

功率
Power/Kw

備注
Remark

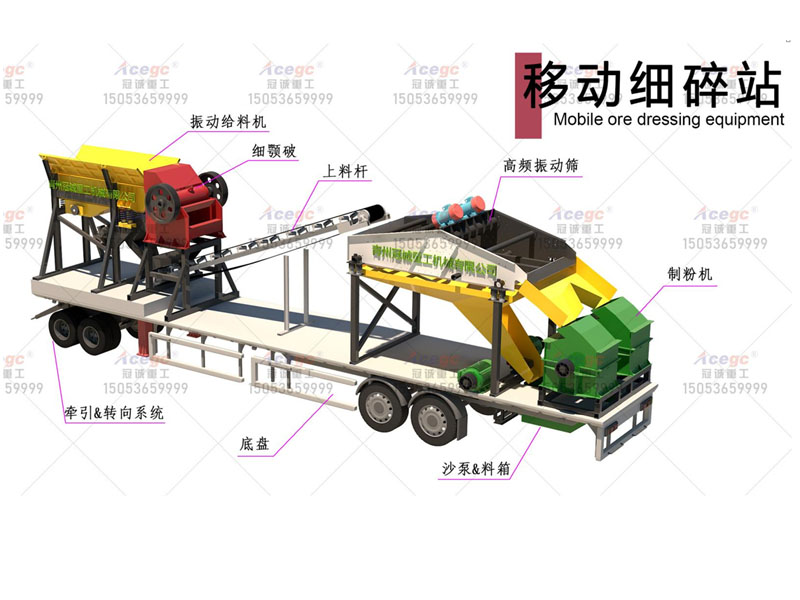

底盤
chassis

四軸16條9.00-2#輪胎；
自制重型汽車底盤，采用56#\25#工字鋼梁焊接
4 axle 16 tire 9.00-2

1套
1set

-

含牽引&轉向系統
Including traction & steering system

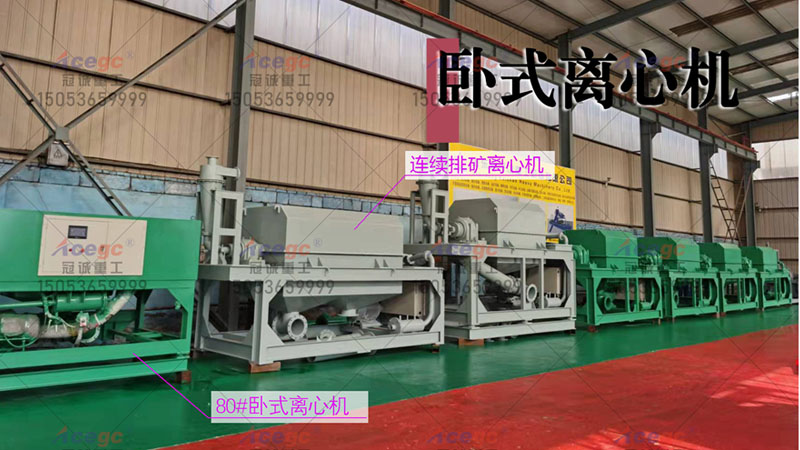

離心機
Centrifuge

規格：1200#臥式全自動排礦
Specifications:1200# horizontal fully automatic ore discharge
PLC電腦全自動控制
PLC computer automatic control
空氣壓縮機：3KW*1臺
Air compressor: 3kw * 1 set
電機：18.5KW*1臺
Motor: 18.5kw * 1 set

2臺
2sets

43

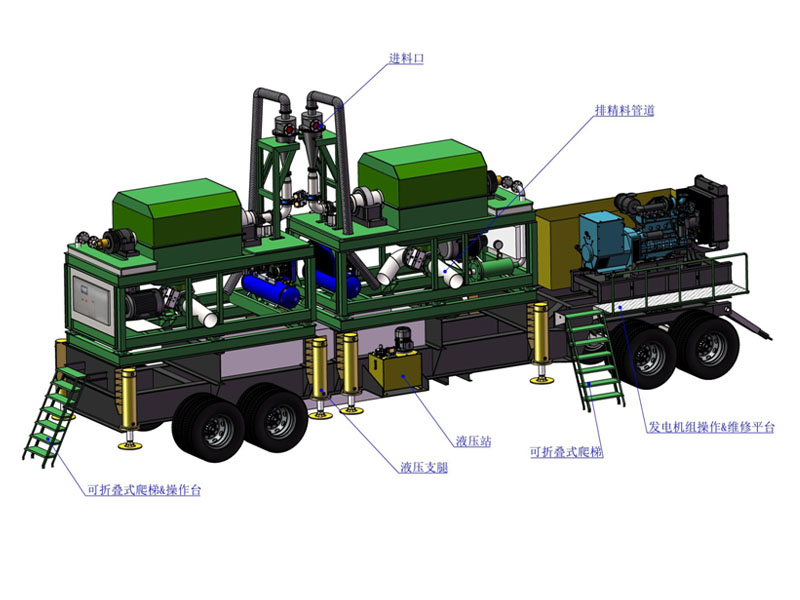

液壓系統
Hydraulic system

液壓站1臺1 hydraulic station
液壓支腿8條  8 hydraulic Outriggers

1套
1set

5.5

離心水泵
Centrifugal pump

流量：200；揚程20米；6進5出
輸送距離200-300米
Flow: 200m3/h;
conveying distance: 200-300m;
lift: 20m
Inlet: 6 inches; outlet: 5 inches

1臺
1set

18.5

含進水管道12米(橡膠鋼絲管)，出水管道30米(消防水帶)，超出部分由配件選擇。
The water inlet pipe is 12m (rubber steel pipe), and the outlet pipe is 30m (fire hose). The excess part is selected by accessories.

7寸沙泵
7 inch sand pump

進料7寸；出料6寸Feed 7 inches; discharge 6 inches
輸送距離40-60米，揚程10米The conveying distance is 40-60m and the lift is 10m
流量Flow：360m3 /h

1套
1set

45

配帶出料管道(橡膠鋼絲管)30米
Equipped with discharge pipe (rubber steel pipe) 30m

料箱

板厚12mm；容積約5.7m3

1套
1set

-

配電箱
Power Distribution Box

開關品牌：德力西
Switch brand: Delixi

1套
1set

-

含至設備電機線，不含電纜線
Including motor line to equipment, excluding cable line

總功率
Total power

106.5KW（不含液壓站功率Excluding hydraulic station）
